Description:

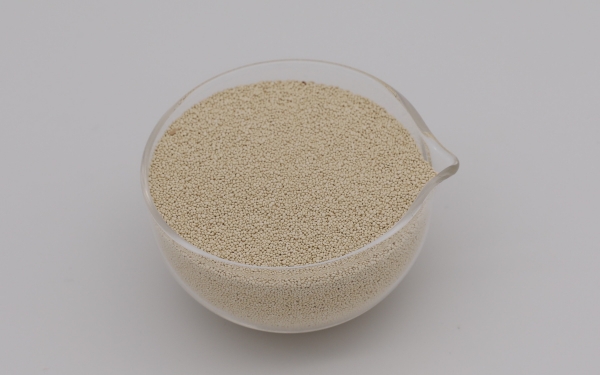

JZ-OM9 & JZ-OML Oxygen Molecular sieve is specially designed for small medical oxygen concentrators for PSA/VPSA system, which has good selectivity of N2/O2,excellent crush strength, loss on attraction and little dust.

Applications:
Portable Oxygen Concentrator

Specification:

Properties Unit JZ-OM9 JZ-OML
Type / 13X HP Lithium
Diameter mm 0.5-0.8 0.5-0.8
Static Water Adsorption ≥% 30 30
Static CO2 Adsorption ≥% 20 /
Static N2 Adsorption ≥NL/kg 8 22
Separation coefficient of N2 /O2 / 3.2 6.2
Bulk Density ≥g/ml 0.64 0.60
Attrition Rate ≤% 0.3 0.5
Package Moisture ≤% 1 /

Attention:
The product as desiccant cannot be exposed in the open air and should be stored in dry condition with air-proof package.

Properties Unit JZ-OM9 JZ-OML
Type / 13X HP Lithium
Diameter mm 0.5-0.8 0.5-0.8
Static Water Adsorption ≥% 30 30
Static CO2 Adsorption ≥% 20 /
Static N2 Adsorption ≥NL/kg 8 22
Separation coefficient of N2 /O2 / 3.2 6.2
Bulk Density ≥g/ml 0.64 0.60
Attrition Rate ≤% 0.3 0.5
Package Moisture ≤% 1 /
